ATOMOS

ATOMOS Sumo 19" SE HDR Monitor, Recorder, and Switcher (SPECIAL ORDER)

SKU: ATO-ATOMSUMSE1

£1,829.99

Tax included. Shipping calculated at checkout.

  • Special Order Available. Estimate Delivery Date: 10-14 Working Days (Subject to Change)
  • Special Order Available. Estimate Delivery Date: 10-14 Working Days (Subject to Change)
  • Verified Secure Shopping

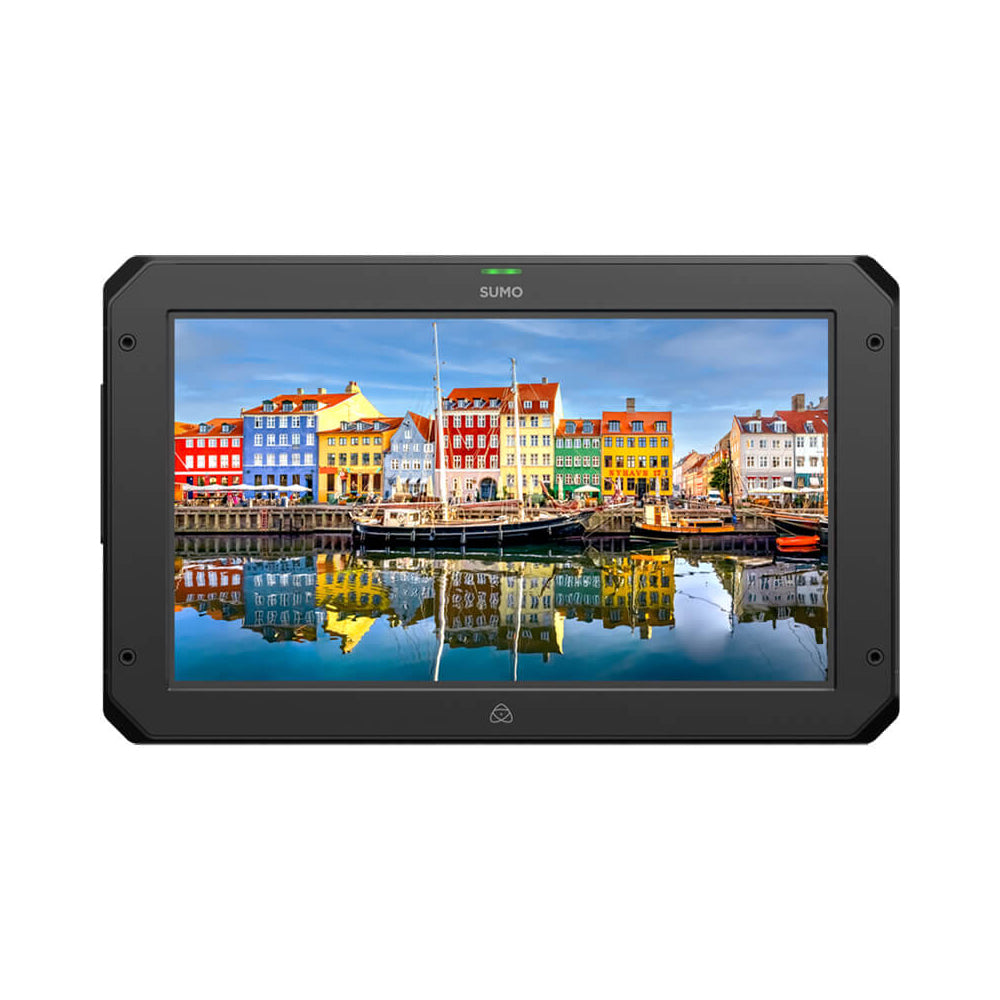

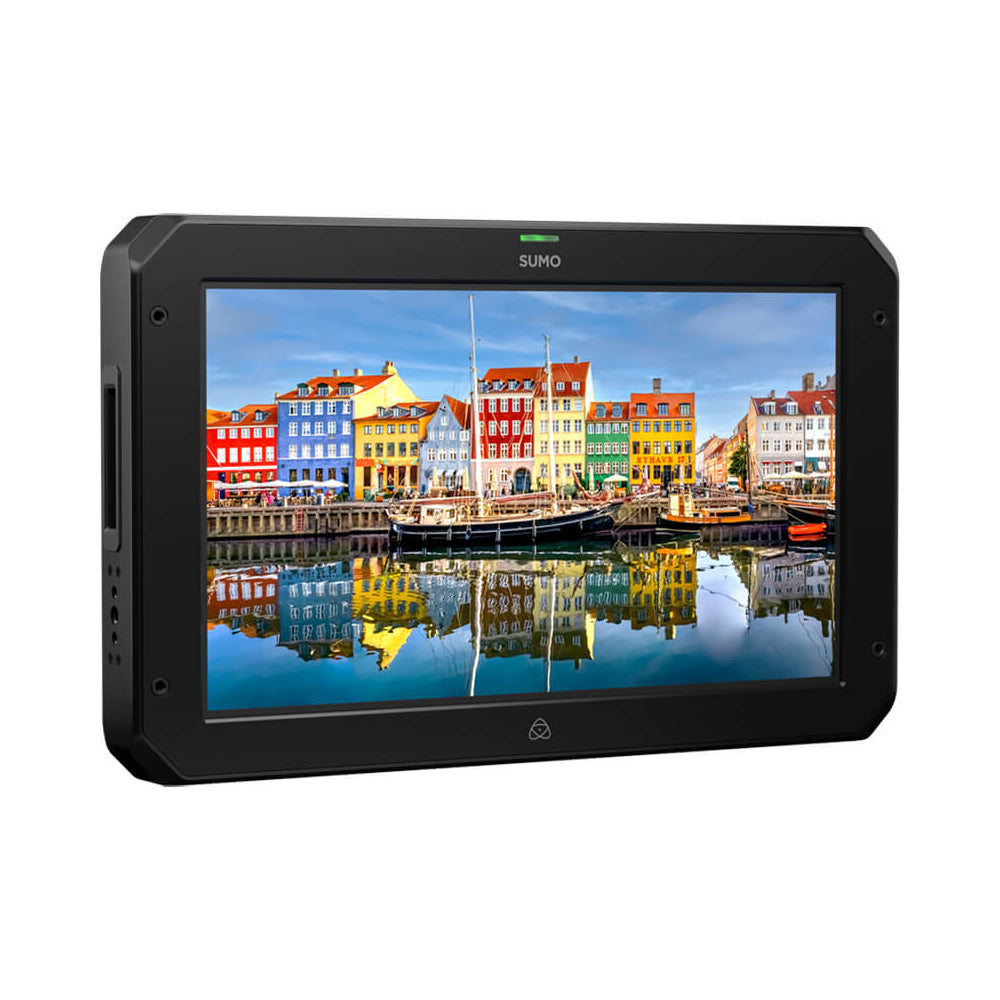

The ATOMOS Sumo 19" SE is an HDR Monitor, Recorder, and Switcher that can bring together a 4K HDR workflow across multiple different sources including cameras, audio and other Atomos devices. It comes with a range of impressive features such as 4K HDMI/SDI recording, touchscreen controls and Apple ProRes RAW up to 6Kp30. It can be powered using either mains power or external battery sources and features 4 HD ISO switching and recording capabilities.

High-Quality Capture

Capture the highest quality video possible using the Sumo 19SE via either SDI or HDMI. There are several different recording options including Apple ProRes RAW at up to 6Kp30, 4Kp60 DCI/UHD, and 2Kp240 DCI/HD, or record in CinemaDNG at up to 4Kp30 DCI.

An Atomos Sumo19 Monito being used on a cosmetics shoot

Professional Camera Compatibility

Video is able to be captured from any camera or digital video source that features either an SDI or HDMI, and is compatible with higher-end video cameras such as Sony FS series cameras, Canon C300MKII/C500, Panasonic EVA-1/Varicam LT, and more. Due to built-in support for multiple inputs, the Sumo 19SE is able to record up to 4x inputs at one time.

An Atomos Sumo19 Monito being used to film a helicopter

Bright & Precise Display

The Sumo 19SE Monitor features a 1200nit brightness, 19-inch, 1920 x 1080 display with 10-bit processing, that provides a crystal clear display to allow for easy control and adjustment during use in any environment.

Simultaneous Recording

Record up to 4 different 1080p60 streams at the same time (when using 3G SDI Level A Only) as separate ISOs, as well as a fifth "program" channel of the switching feed itself, whilst also being able to switch and cue in real-time. The results can then be displayed either live on set or via a live streaming platform using an HDMI to USB capture device.

Quality Audio

Each Sumo 19SE comes with full-size XLR connectors with 48V phantom power to allow two separate external microphones to be connected alongside balanced analogue audio recording and monitoring. It also features dedicated meters, gain controls, and adjustments for frame delay with the audio able to be seamlessly synchronised with embedded audio from the HDMI and SDI sources.

An Atomos Sumo19 Monito being used on a film set

Multiple Power Options

This Monitor can be powered using either mains power or V-Lock / Gold Mount batteries via the included BattWing, ideal for use on location shoots where power options may become limited.

The ATOMOS Sumo 19" SE HDR Monitor, Recorder, and Switcher are perfect for large-scale cinematography productions that require instant feedback and professional control.

Please note, this particular product is part of our “Special Order” selection, so we may not hold stock for this, and is placed to order. If you are interested in this item, you can place this order as a Pre-Order, and we will Special Order your product directly from the manufacturer. This should take approximately 10-14 working days to be delivered, but please note this is subject to change.

Features

  • 1200 nit HDR touchscreen covering DCI-P3 colour gamut
  • Record in Apple ProRes RAW via SDI up to 6Kp30
  • 10-bit 4:2:2 Apple ProRes or Avid DNxHR at 4Kp60
  • Power from A/C or use dedicated Battery XLR inputs
  • 100 x 100 VESA mount, 3/8” and 1/4”-20 mount
  • Two high-quality SDI inputs and one HDMI input
  • Supports Live quad-channel HD switching

What’s In the Box

  • 1x Sumo 19SE
  • 1x Master Caddy II
  • 1x BattWing mounting bracket with 4x screws
  • 2x Desktop Feet with 4x 1/4" Mounting screws
  • 1x AC Power Supply

Specifications

Physical Specifications
Dimensions
310mm x 504mm x 63mm
Weight
6.2kg
Mount points
Top: 4 x 1/4' 20, 2 x 3/8"
Bottom: 6 x 1/4' 20, 3 x 3/8"
Right: 4 x 1/4' 20, 2 x 3/8"
Left: 2 x 1/4' 20, 1 x 3/8"
VESA mount
100 x 100
Environmental
Ambient operating temperature
Up to 40°C
Control Options

Cooling
Actively controlled fan and Heat Sink
Tally light
Rear and front
Multi-function button
Power / lock Screen
Touch Screen
Yes
Power Options
Input voltage
DC 12-16.8v
Operating power
75W
Compatible batteries
V-Lock / Anton Bauer Gold Mount via XLR terminal
Battery voltage
14.4V nominal
Continuous power
Dual Battery input via dedicated 4 pin XLR
DC in connector
1x 4 pin XLR (12-16.8V)
Dtap
Via optional D-Tap to 4 Pin XLR cable
Display
Touchscreen
SuperAtom IPS panel (capacitive touch)
Size
19"
Resolution
1920 x 1080
PPI
120
Bit depth
10Bit (8+2 FRC)
Backlight Type
Optically bonded quantum dot
Brightness (cdm2 / nits)
1200nit (+/- 10% @ center)
Aspect ratio
16:9 Image Display
Colour Gamut
DCI P3
Video Input
HDMI
 1x HDMI (2.0) 4K p60
HDMI RAW
No - HDMI Video only
SDI
4 x 3G SDI, with 2 x 12G SDI backwards compatible, auto detection
SDI RAW
Apple ProRes RAW up to 6Kp30
Bit Depth
8/10Bit Video / RAW up to 12Bit
Video Chroma Subsampling
YCbCr 422
HDR
Yes with Auto detection
Video Output
HDMI
1x HDMI (2.0) 4K p60
SDI loop out
1 x 12G SDI Backwards compatible, Auto-detection. Level A and B selectable
SDI Play out
1 x 12G SDI Backwards compatible, Auto-detection. Level A and B selectable
Video Chroma Subsampling
422
Bit Depth
10Bit Video / 12Bit RAW
Video Conversion
HDMI to SDI
Yes
SDI to HDMI
Yes - Video and RAW
Audio In/Out
Audio Quality
24-Bit / 48kHz
Audio Codec
PCM
HDMI
8ch 24Bit, input dependent
SDI
12ch 24Bit, input dependent
Analogue Audio in
2x XLR
Analogue Audio Out
2x XLR
Speakers
2x 5w
Headphone out
3.5mm 2ch


Manufacturer Code ATOMSUMSE1
