Blackmagic Design ATEM Mini Pro switchers simplify professional multi-camera live streaming to YouTube or business presentations via Skype or Zoom. Connect up to 4 video inputs for superior image quality, or add a computer for slides or gaming consoles. The built-in DVE enables picture-in-picture effects, ideal for commentary, along with various video effects. All ATEM Mini models feature USB webcam functionality for streaming software, while the ATEM Mini Pro adds live streaming and USB disk recording. ATEM Mini also includes advanced broadcast features for high-end production.
Live production with ATEM Mini lets you quickly complete a program and stream it globally on platforms like YouTube. Its USB webcam output connects to any computer, making it compatible with all streaming software. With up to 4 HDMI inputs, you can switch between camera angles, close-ups, or content like slideshows and video clips. All switching is in real time, allowing seamless live streaming to social media platforms like YouTube, Facebook, and Twitch.

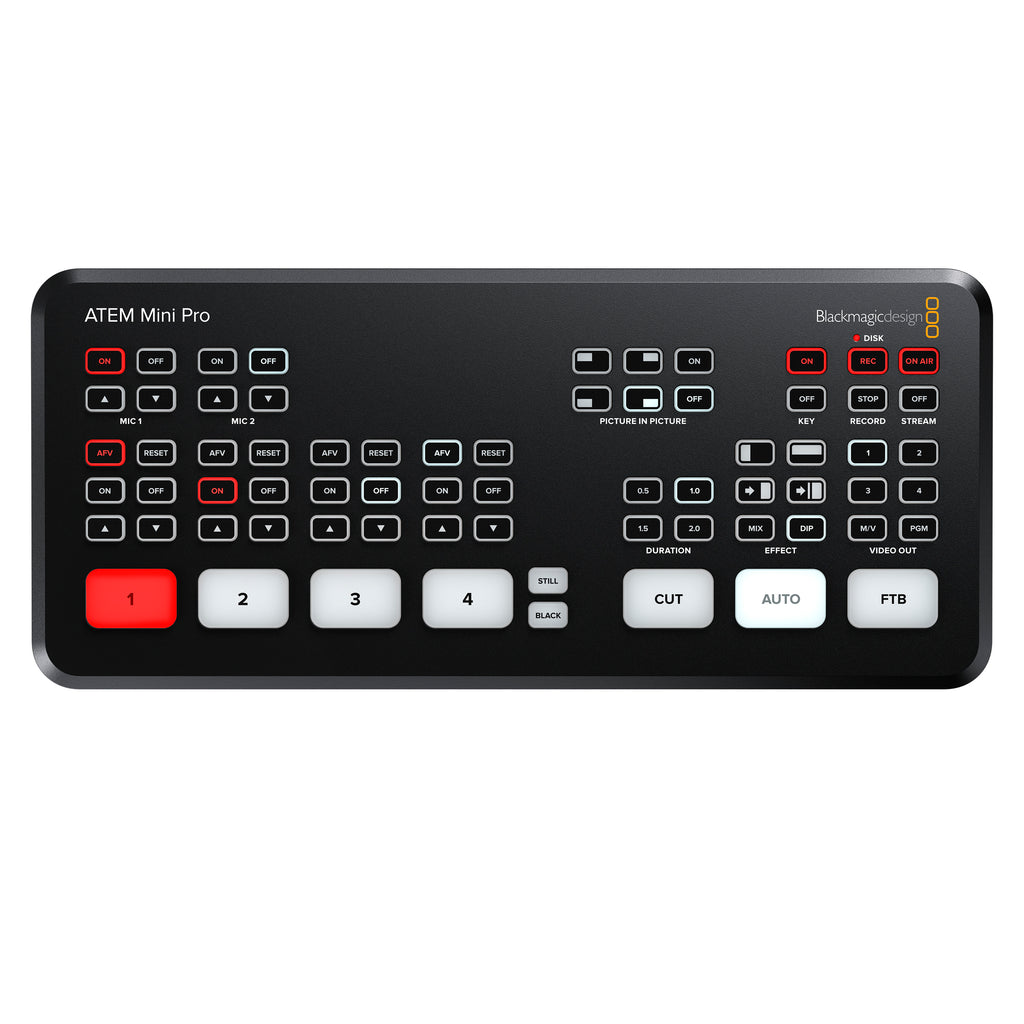

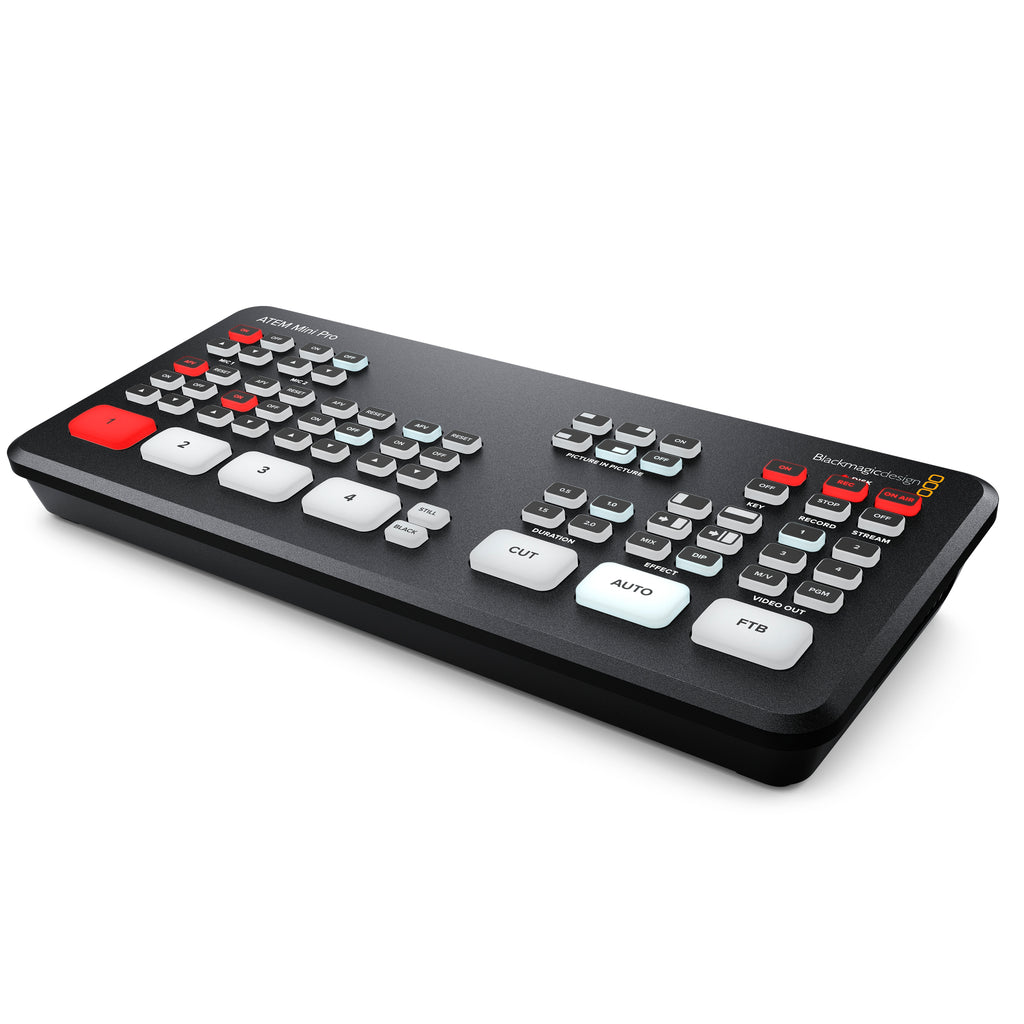

ATEM Mini features a compact all-in-one design with an integrated control panel and connections. The front panel has large buttons for selecting sources, video effects, transitions, and audio mixing, making it easy to control by feel. The ATEM Mini Pro adds buttons for record, streaming control, and output selection, allowing you to switch between cameras, program, and multiview. The rear panel includes HDMI inputs for cameras or computers, extra microphone inputs, USB webcam output, and an HDMI "aux" output for program video.
The ATEM Mini is incredibly easy to use—just press any input button (1 to 4) to switch between video sources. Choose between cut or effects transitions with the cut or auto buttons. The auto button activates video effects, such as dissolve, dip to colour, DVE squeeze, or DVE push. DVE is ideal for picture-in-picture, and you can quickly set up different positions. A still store for titles and graphics is also available via external software control.
With 4 HDMI inputs, you can connect up to 4 high-quality video cameras. Unlike webcams, HDMI cameras offer better lenses and low-light performance. The switcher automatically re-syncs video sources, even if they use different standards. HDMI cameras often support interchangeable lenses, perfect for wide-angle shots or close-ups. These features are ideal for theater productions, weddings, school concerts, and music videos.
ATEM Mini has a USB connection that works as a webcam, ensuring easy compatibility with any video software. It appears as a regular webcam but functions as a live production switcher, offering full 1080p HD resolution. Compatible with software like Open Broadcaster, Skype, Zoom, YouTube Live, Facebook Live, Twitch, and more, ATEM Mini is perfect for streaming and presentations.
The ATEM Mini Pro features a built-in hardware streaming engine for live streaming via Ethernet, allowing smooth streaming to YouTube, Facebook, and Twitch with simpler settings and no dropped frames. Just select the service and enter the streaming key. ATEM Software Control provides easy access to streaming setup and status, with a data rate indicator for internet speed. For advanced users, you can modify streaming profiles in the XML file to add new services.
The ATEM Mini Pro supports direct recording to USB flash drives in the same H.264 video format with AAC audio as your stream, allowing easy uploads to sites like YouTube or Vimeo. It supports multiple disks via a USB hub or Blackmagic MultiDock for continuous recording. Setup and disk selection are managed in ATEM Software Control, and the multiview shows recording status. You can also trigger recording on Blackmagic Pocket Cinema Cameras.
ATEM Mini offers professional production with built-in video effects. The cut button provides instant source switching, while the auto button enables video effects transitions. Duration buttons allow you to set effect times (0.5, 1, 1.5, or 2 seconds). Choose from effects like mix (smooth transitions), dip (colour fade), or fun DVE effects that move the image off-screen during transitions.
ATEM Mini has two 3.5mm stereo audio inputs for connecting desktop or lapel microphones, plus a music player for intro music before the program starts. You can also connect two additional microphones for interviews. Each input has a button for adjusting audio levels and mixing. Featuring a full Fairlight audio mixer, all HDMI and microphone inputs are individually routed to the mixer for live audio mixing.
Each of the 4 HDMI inputs on ATEM Mini has its own dedicated standards converter, automatically converting 1080p, 1080i, and 720p sources to the switcher's video standard. The switcher auto-selects the video format, but you can also set it manually. The HDMI output serves as a true "aux" output, allowing clean switching between HDMI inputs or the program feed. For low-latency eSports, you can switch input 1 directly to the HDMI output. The HDMI output can show either the preview or, on the ATEM Mini Pro, a full multiview.
ATEM Mini is easy to use yet packed with powerful broadcast features, making it ideal for training in the TV industry. It offers advanced tools like the ATEM Advanced Chroma Key, Fairlight audio mixer, DVE, and a still store for graphics. Use the free ATEM Software Control app on Mac or Windows via USB or Ethernet to unlock these features. With some experimentation, you can create broadcast-quality live productions. ATEM Mini delivers professional-grade capabilities in a compact, affordable design.
The built-in media pool lets you load up to 20 RGBA graphics for titles, logos, and opening plates. These images appear as an additional video source for graphics and effects, such as graphic wipes. ATEM Mini can capture stills from the video output and add them to the media pool. Graphics can be loaded via ATEM Software Control or directly from Photoshop using the ATEM Photoshop plug-in, ideal for frequently updated graphics like scoreboards.
ATEM Mini is ideal for news or on-set presentations with its upstream ATEM Advanced Chroma Key and downstream linear keyer. The chroma keyer features a colour picker for automatic key parameter generation, precise edge and flare controls, and a foreground colour corrector for seamless compositions. It also supports pattern and DVE keying, as well as title overlays by removing green or blue backgrounds from graphics for transparency.
ATEM Mini starts in "cut bus" mode, where selecting an input instantly switches sources. However, you can switch to "program/preview" mode for a professional workflow using ATEM Software Control. In this mode, a source is selected but only goes live when you press cut or auto, reducing mistakes. This two-step process is perfect for broadcast training.
The ATEM Mini Pro offers a professional multiview feature, displaying all 4 video inputs, plus preview and program, on a single HDMI monitor. Just select M/V on the front panel to activate multiview. Each camera view includes tally indicators, custom labels, audio meters, and media player status. Multiview also shows recording, streaming, and Fairlight audio mixer status.
ATEM Mini’s built-in Fairlight audio mixer offers 12 channels for mixing audio from all HDMI sources and 2 stereo mic inputs. Each channel features a 6-band EQ, compressor, limiter, expander, noise gate, and full panning. You can set up auto mixing with "AFV" or live mix multiple sources. Control audio via ATEM Software Control, a Mackie-compatible panel, or a Fairlight Audio Console.
ATEM Software Control connects to ATEM Mini via USB or Ethernet. Using Ethernet allows you to share your computer’s internet for streaming on the ATEM Mini Pro. Simply connect via Ethernet, enable internet sharing on your computer, and select the ATEM Mini model in the software. This setup lets you control and stream with a single Ethernet cable, offering mobility through wireless connections like WiFi or 4G/5G tethered phones.
ATEM Mini allows remote control of cameras, including Blackmagic Pocket Cinema Camera 4K and 6K, via HDMI. You can adjust camera settings, including ISO, tint, iris, focus, and zoom, all from ATEM Software Control. It offers two control interfaces: a traditional CCU layout for tint and colour control, and a DaVinci colour corrector interface for adding digital film "looks" to your production.
The Ethernet connection enables remote control of ATEM Mini from anywhere, even without ATEM Software Control. You can place the ATEM Mini near the HDMI cameras and control it remotely from a quiet space, like a control room. This setup allows for professional broadcasting with separate control and performance areas. Ethernet also supports multiple panels and custom solutions via the developer SDK.
The HDMI program output lets you connect ATEM Mini to external recorders like Blackmagic Video Assist or video projectors. It provides high-quality program video and live audio from the internal mixer. With ATEM Software Control, you can ISO record individual inputs. On the ATEM Mini Pro, you can record in ProRes from the HDMI output while simultaneously saving the H.264 stream to a USB flash drive.
Please note, this particular product is part of our “Special Order” selection, so we may not hold stock for this, and is placed to order. If you are interested in this item, you can place this order as a Pre-Order, and we will Special Order your product directly from the manufacturer. This should take approximately 10-14 working days to be delivered, but please note this is subject to change.

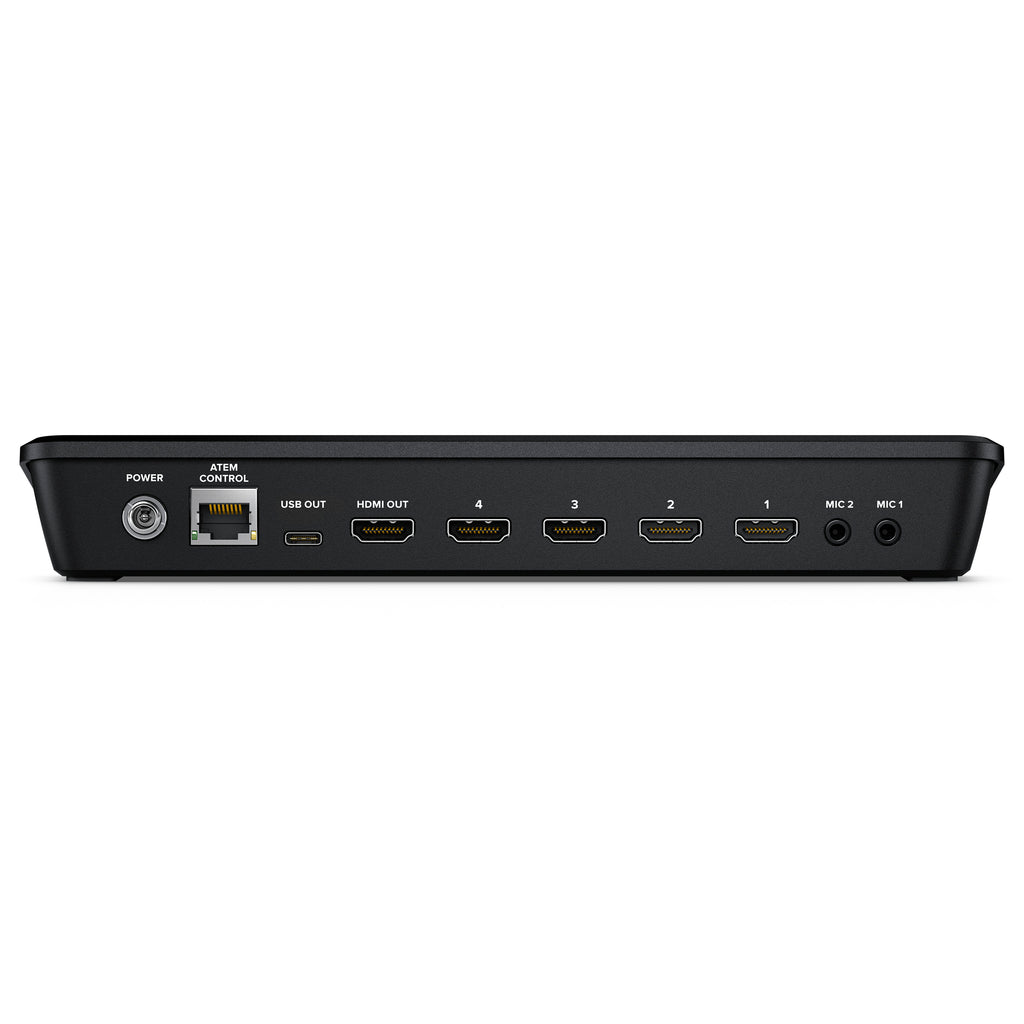

| Connections | |
| Total Video Inputs | 4 |
| Total Outputs | 2 |
| Total Aux Outputs | 1 |
| Total Audio Inputs | 2x 3.5mm stereo mini jack |
| Total Audio Outputs | None, embedded audio only |
| Timecode Connection | None |
| HDMI Video Inputs | 4x HDMI type A, 10-bit HD switchable, 2 channel embedded audio |
| Video Input Re-Sync | On all 4 HDMI inputs |
| Frame Rate and Format Converters | On all 4 HDMI inputs |
| HDMI Program Outputs | 1 |
| Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection |
| Computer Interface | 1x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection |
| Standards | |
| HD Video Input Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| HD Video Output Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards | None |
| Video Sampling | 4:2:2 YUV |
| Colour Precision | 10-bit |
| Colour Space | Rec 709 |
| HDMI Input Resolutions from Computers | 1280 x 720p 50Hz, 59.94Hz and 60Hz. 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz. 1920 x1080i 50 and 59.94Hz 60Hz. |
| Colourspace Conversion | Hardware based real time. |
| Audio Mixer | 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow- Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
| Product Specifics | |
| Upstream Keyers | 1 |
| Downstream Keyers | 1 |
| Advanced Chroma Keyers | 1 |
| Linear/Luma Keyers | 2 |
| Transition Keyer | DVE only |
| Total Number of Layers | 5 |
| Pattern Generators | 1 |
| Colour Generators | 2 |
| DVE with Borders and Drop Shadow | 1 |
| Interface | Minimum monitor resolution of 1366x768 |
| Streaming | |
| Direct Streaming | ATEM Mini Pro supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP). |
| Recording | |
| Direct Recording | 1x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard. |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| Multi View Monitoring | |
| Multi View Monitoring | 1x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. |
| Multi View Video Standard | HD |
| Media Player | |
| Media Players | 1 |
| Channels | Fill and key for each Media Player. |
| Media Pool Still Image Capacity | 20 with fill and key. |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF |
| Other Specifications | |
| Control Panel | Built in control panel. Software control panel with camera control included. Supports optional hardware panel. |
| Control Panel Connection | Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software. |
| Control Panel Compatibility | Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel. |
| Control Panel Included | ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only. |
| Software Updates | Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility. |
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis. |
| Operating Systems | Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10 64 bit only. |
| Power Supply | 1x External 12V power supply. |
| Power Usage | 36W |
| Operating Temperature | 5° C to 40° C (41° - 104° F) |
| Storage Temperature | -10° to 60° C (14° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Manufacturer Code | SWATEMMINIBPR |
