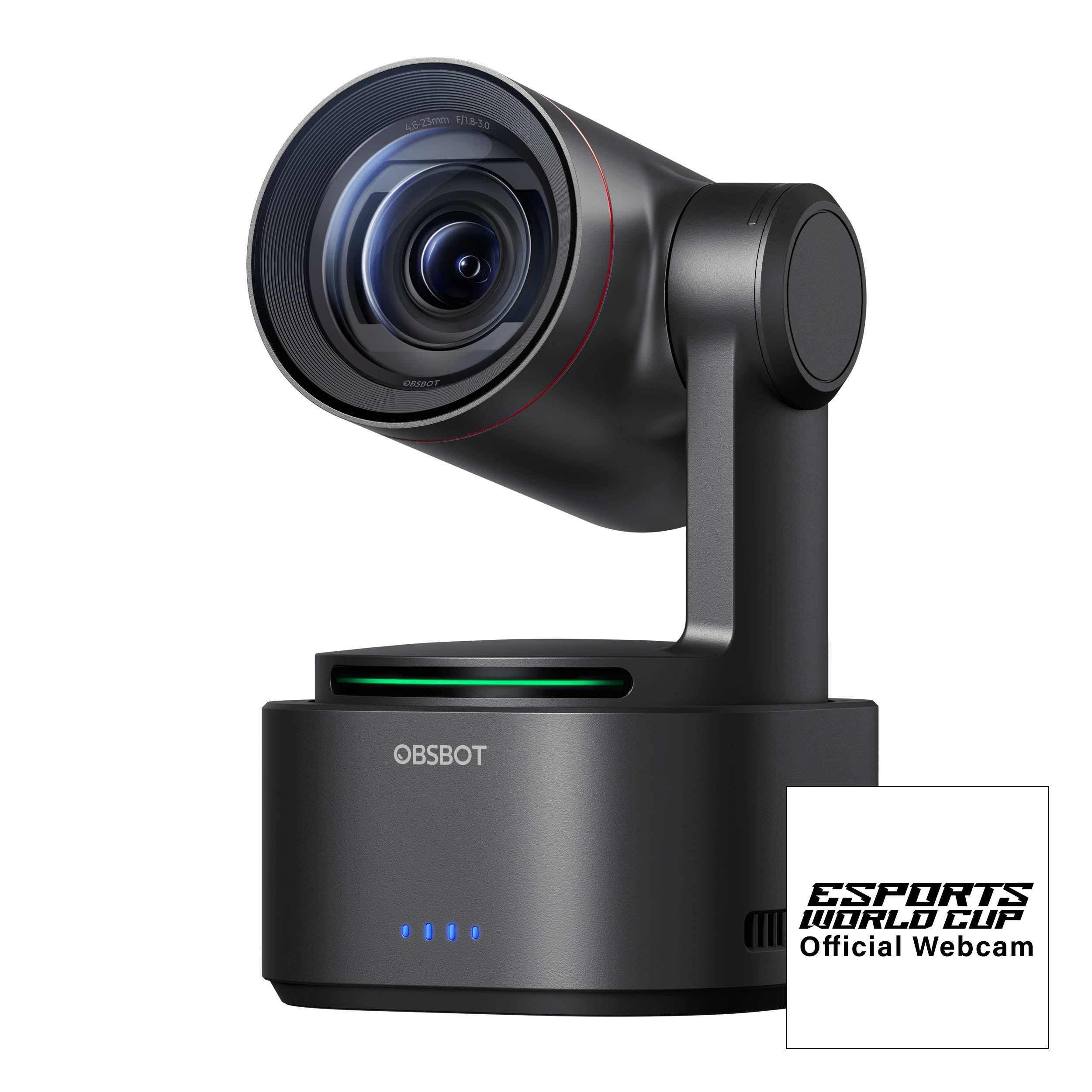

Tail 2 4K AI-Powered PTZR Live Production Camera

SKU: OBS-700001

£1,199.00

Tax included. Shipping calculated at checkout.

  • Out of stock, pre-order available
Add Accessories:
£99.00
£79.00
£1,100.00
Your Total:
  • Verified Secure Shopping

Experience the future of live production with the groundbreaking OBSBOT Tail 2 PTZR Production Camera. With its innovative PTZR lens design, featuring an Advanced 12-element 5x Optical Zoom Lens System, along with a Large Premium 1/1.5'' CMOS, Sensor, and AI Tracking 2.0, the Tail 2 captures subjects with remarkable precision, even at extended distances. the Tail 2 also features multiple connectivity interfaces, from SDI to NDI, and HDMI to UVC, allowing it to meet the demands of an all-professional production team. Experience a new standard of innovation with OBSBOT Tail 2 - where imagination meets reality.

Next-Level Tracking Precision!

Benefiting from extensive research and development in AI algorithms, the OBSBOT Tail "takes advantage of the new AI Tracking 2.0 protocol. OBSBOT's advanced artificial intelligence neural network allows for improved tracking, greater subject detection, and an unprecedented amount of customisation options.

Obsbot Tail 2 4K AI-Powered PTZR Live Production Camera

With 'Only Me,' Your Target Stays Locked!

Utilising an advanced human tracking algorithm, OBSBOT has incorporated the "Only Me" feature into the Tail 2 camera, guaranteeing unwavering attention to your desired subject. By activating the Tail 2 PTZR live production camera, you can rest assured that your chosen target will be the sole focus, disregarding any other potential subjects in the frame.

an Anuimated GIF of a rhythmic gymnast being tracked by the Tail 2 Camera

Track Groups, Not Just Individuals!

When filming groups, OBSBOT's advanced AI algorithm ensures exact group tracking. When activated, the Tail 2 camera maintains ideal framing by intelligently focusing on the main target while capturing all individuals within its field of view, producing flawless group compositions.

An animated GIF showing the Obsbot Tail 22s Group tracking capabilities

Tracks People, Pets, Objects, and More!

The OBSBOT Tail 2 PTZR live production camera offers a wide range of subject-tracking capabilities, including 30 types of animals and 200 types of objects. Its advanced recognition system quickly identifies targets and adjusts framing to keep your subjects centred.

An image of multiple objects and animals to show the Tail 2 's tracking Capabilities

Double-Tap to Activate AI Tracking!

The Tail 2's AI tracking can now be easily initiated by double-tapping on your desired target using the Obsbot Start preview interface. Thanks to their enhanced recognition system and extensive database, you can quickly and precisely track any supported subject with minimal delay.

Smartphone app used to track a dog in motion

Frame Like a Pro Without Effort

The advanced AI technology's robust auto zoom features a remarkable range of 3-24x. Whether capturing close-up portraits or distant shots, you can tailor your framing for various compositions while upholding top-notch outcomes effortlessly.

Ani image to show the 5x optical zoom range of the Tail 2 camera

Make Every Frame Clear

The OBSBOT Tail 2's lens optics comprise 12 high-quality lens elements, which lead to a large 1/1.5" CMOS sensor. This powerful combination produces stunning, high-resolution images, no matter the lighting conditions. Its 2μm pixel size ensures you get exceptional video quality, even in low-light conditions.

An image showing the 12 lens elements that make up the Tail 2's optics

Hey, It's Optical Zoom

The OBSBOT Tail 2 PTZR live production camera now features a 5x optical zoom and 12x hybrid zoom. This makes objects that are far away appear sharp and detailed, as if they were right in front of you, pushing the boundaries of long-distance videography.

A Close-Up and wide images of a Light house to show the 5x optical zoom. and 12x Hybrid zoom.

Native Performance in Any Light

Utilising innovative dual native ISO technology, the OBSBOT Tail 2 intuitively adjusts to varying lighting conditions. It seamlessly switches to low ISO mode in bright environments to avoid overexposure and activates high ISO mode in darker settings. This allows for sharp footage with minimal noise, ensuring superior image quality in every lighting scenario.

An image to show the low light capabilities of the Tail 2 production camera

Let the Lens Rotate

It features an exclusive gimbal structure that allows for rotation of the lens itself by 90°. This makes capturing seamless vertical 4K images together with providing exceptional stabilization possible. The camera also features an auto levelling system, ensuring the lens always remains completely horizontal, for optimal recording.

An animation showing the Tail 2's lens rotating for vertical video

Worry-free Auto Levelling

Since the lens is rotatable, the Tail 2 PTZR live production camera features an auto levelling system, which detects the tilts of the camera automatically and rotates the lens module to counter the tile of the camera itself. This ensures that your footage is level at all times, without the need for manual adjustments during shooting.

An animation show the auto levelling capabilities of the Tail 2 camera

Improved Connectivity for Pro-Level Setups

The Tail 2 AI-powered camera features a multitude of interfaces, allowing you to select the best interface for your specific needs. These interfaces include HDMI, Ethernet, RS-232, USB 3.0, and SDI ports, among others. Whether you are a content creator or are working in the broadcast industry, the OBSBOT Tail 2 PTZR camera has been designed to meet the demands of professional live streamers and broadcast production workflows.

an image showing the multiple vide interfaces

Advanced NDI Support

Featuring NDI integration, the OBSBOT Tail 2 allows you to effortlessly transmit live video over your network, simplifying multi-camera setups and providing you with more options for remote video control and production in real-time.

Universal Pelco Support for Streamlined Control

The Tail 2 AI-powered camera now supports professional control systems, including the Pelco-D and Pelco-P protocols. This integration allows for seamless control of OBSBOT Tail 2's PTZ functions through industry-standard controllers. This makes it perfect for integrating into existing professional streaming setups.

The Obsbot Tail 2 supports the Pelco-D and Pelco-P protocols

Use FreeD with Tail 2 for a More Imaginative World

The OBSBOT Tail 2 is an exceptional tool for live AR and VR production with compatibility with the FreeD protocol. Thanks to its minimal angular vibration, precise data transmission, and built-in AI features, your audience can be fully immersed in a blend of real surroundings and virtual video capture from Tail 2.

the Obsbot Tail 2 Being used for AR during a  Live Broadcast

The Obsbot Tail 2 4K AI-Powered PTZR Live Production Camera is an essential purchase for high-production content creators and broadcasting productions who want the ability to freely move around the set without having to worry about going out of frame.

Features

  • World's First PTZR Camera: Hands-Free 90° Rotation
  • AI Tracking 2.0
  • High Resolution up to 4K@60fps & 1080P@120fps
  • 12 Optical Lenses & 1/1.5" CMOS
  • 5x Optical Zoom & 12x Hybrid Zoom/li>
  • Wide Connections Including NDI, SDI, HDMI, Ethernet and More
  • More Features in OBSBOT Software Suite

What’s In the Box

  • 1x OBSBOT TAIL 2 PTZR Production Camera

Specifications

General Specifications

Dimensions (In Operation)97.5 x 103.5 x 155mm
Dimensions (When Switched Off)97.5 x 103.5 x 172mm
Net. Weight1.066kg
AI ChipIntegrated AI chip, Trillions of calculations per second
Auxiliary FunctionsGesture Control
Auxiliary SoftwareObsbot Start, Obsbot Center, Obsbot Live
Memory Card TypeMicroSD (Maximum: 1TB)



Camera Specifications

Image Sensor1/1.5'' CMOS
Pixel Size2.0µm*2.0µm
Effective Pixels50 million
Effective Pixel Resolution8192x6144
Zoom Range

5x Optical Zoom

12x Hybrid Zoom

Aperturef/1.8-f/3.0
Focus

Auto Focus

Manual Focus

Equivalent Focal Length22mm-110mm
Field of View

W (1x): FOV (D): 89°; FOV (H): 81°

T (5x): FOV (D): 21°; FOV (H): 18°

ISO Range100-12800
Exposure Value±3EV
Electronic Shutter Speed1/8000s to the limit of frames per second
White Balance2,000K-10,000K
Gyroscope6-axis Gyroscope
Photo Resolution4K, 1080P, 720P
Resolution and Frame RateRecording

4K: 3840x2160@60/59.94/50/48/30/29.97/25/23.98 fps

1080p: 1920x1080@120/60/59.94/50/48/30/29.97/25/23.98 fps

720p: 1280x720@120/60/59.94/50/48/30/29.97/25/23.98 fps

HDMI

4K: 3840x2160@60/59.94/50/48/47.95/30/29.97/25/24/23.98 fps

1080p: 1920x1080@60/59.94/50/48/47.95/30/29.97/25/24/23.98 fps

1080p: 1920x1080i@60/59.94/50 fps

720p: 1280x720@60/59.94/50 fps

SDI

1080p: 1920x1080@60/59.94/50/48/47.95/30/29.97/25/24/23.98 fps

1080p: 1920x1080i@60/59.94/50 fps

1080p: 1920x1080PsF@30/29.97/25 fps

720p: 1280x720@60/59.94/50 fps

Max Video Storage BitrateH264:160Mbps,H265:160Mbps
Supported File SystemFAT32、exFAT
Video FormatMJPEG, H264, H265



3-Axis Gimbal

Gimbal installationNon-removable
Controllable Range

Pan: ±160°

Tilt: -60°~32°

Roll: -120°~120°

Mechanical Range

Pan: ±175°

Tilt: ±90°

Roll:-135°~135°

Max Controllable Speed120°/s
Angle Jitter±0.003°



Wi-Fi

StandardWi-Fi 6
Wi-Fi Operating Frequency2.4 G/5.8 GHz
Wi-Fi Signal Transmission Range2.4G 140m , 5.8G 80m
Wi-Fi Protocol802.11 a/b/g/n/ac/ax



Bluetooth

Bluetooth ProtocolBLE 5.4
Bluetooth Operation Frequency Range2.400GHz to 2.4835GHz



I/O Interface

Power InputUSB-C: Default 5V/2A, supports USB PD3.0 fast charging protocol standard
Maximum input voltage 20V, maximum input current 2A (Recommended to use a charger that supports USB PD3.0 standard to ensure proper charging)
PoE+: IEEE 802.3 af/at, maximum supported input power 30W
Video Interface1* HDMI 2.0、1* 3G-SDI、1* USB-C 3.0
Network Interface1* RJ45 10/100/1000Mbps Ethernet port (with PoE+)
Audio Interface1* MIC IN (3.5mm audio interface)、1* LINE IN (3.5mm audio interface )
Control Interface

1* 2.5mm RS232 input, Protocol: VISCA / Pelco-D / Pelco-P

1* 2.5mm RS232 output, Protocol: VISCA / Pelco-D / Pelco-P

1* USB-C 3.0, Protocol: UVC



Battery

Battery TypeLithium Polymer(Li-po)
Battery Capacity5000mAh
Battery Energy38Wh
Battery Voltage7.6V
Operating Time343 minutes
Measured during continuous 1080p/30fps video recording under laboratory conditions, values are for reference only
Charging Time150 Mins (When powered off)



Operating Environment

Camera working environment temperature-10°C-40°C
Battery charging ambient temperature-10°C-40°C
Battery operating ambient temperature-10°C-40°C

⚠ Charging will stop when the battery temperature exceeds 45°C.

For example, when connected to an external power supply, if the battery temperature exceeds 45°C, the camera will stop charging and will be powered directly from the external power supply.
