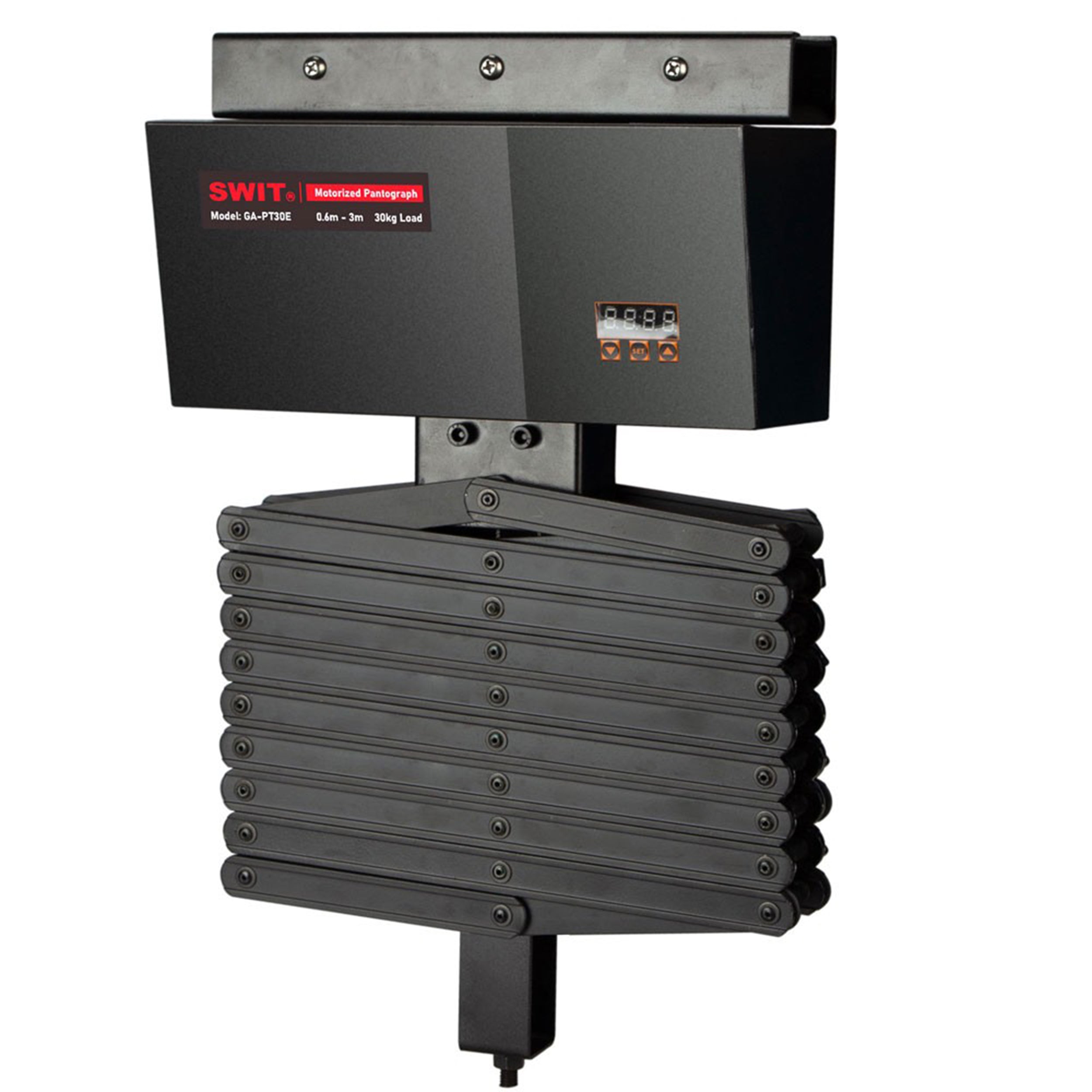

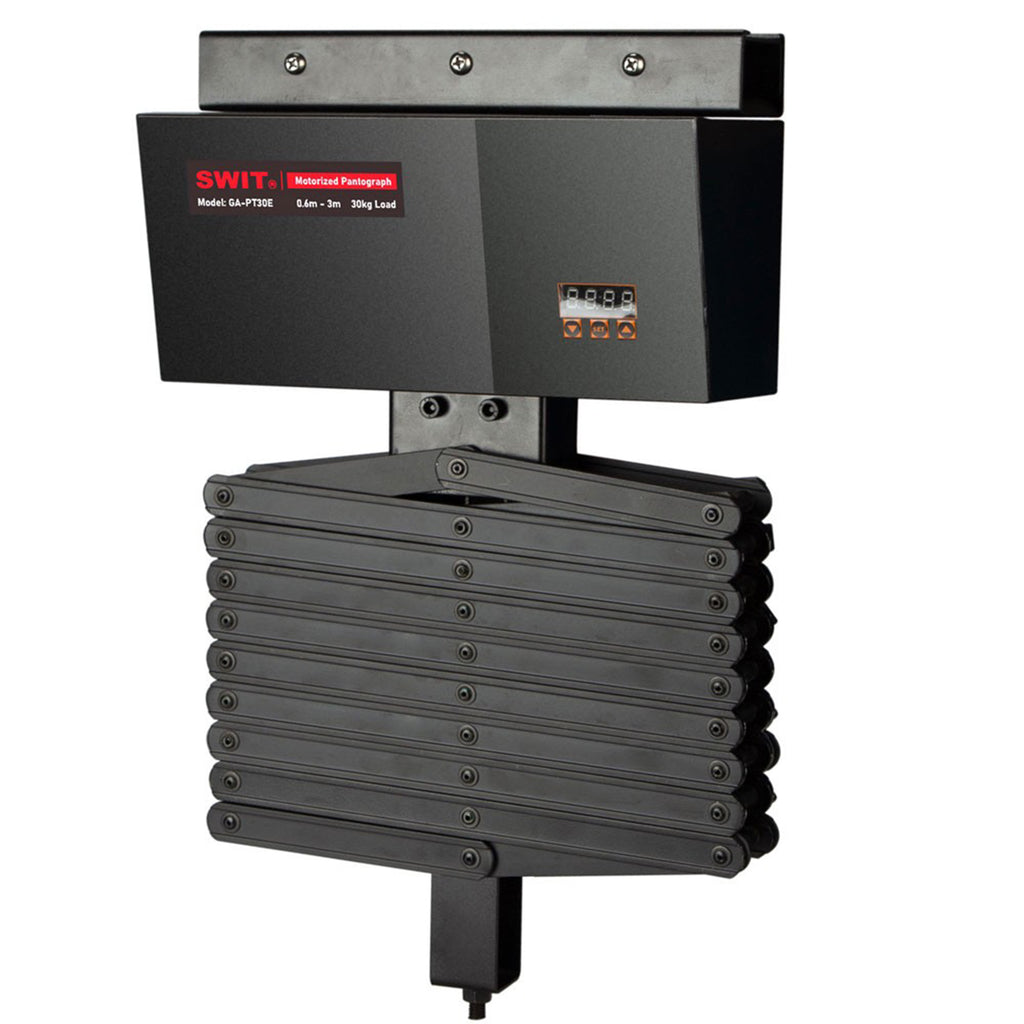

SWIT GA-PT30E DMX Motorized Pantograph (SPECIAL ORDER)

The SWIT GA-PT30E is a cutting-edge motorised pantograph designed to provide precise control over studio lights. Ideal for professional video studios, this pantograph allows seamless adjustments to light height via DMX control, offering a smooth 10cm per second movement. With a maximum load capacity of 30kg and a stretch range of up to 3 meters, the GA-PT30E enhances operational efficiency and flexibility. Built from durable aluminium alloy, it ensures both reliability and longevity, making it the perfect solution for demanding studio environments.

DMX Motorized Control

The GA-PT30E features DMX motorized control for up-and-down positioning, allowing users to adjust the height of studio lights effortlessly via a DMX console. This feature provides convenience for professionals who need quick and precise lighting adjustments. With a movement speed of 10cm per second, the pantograph ensures smooth transitions and precise positioning.

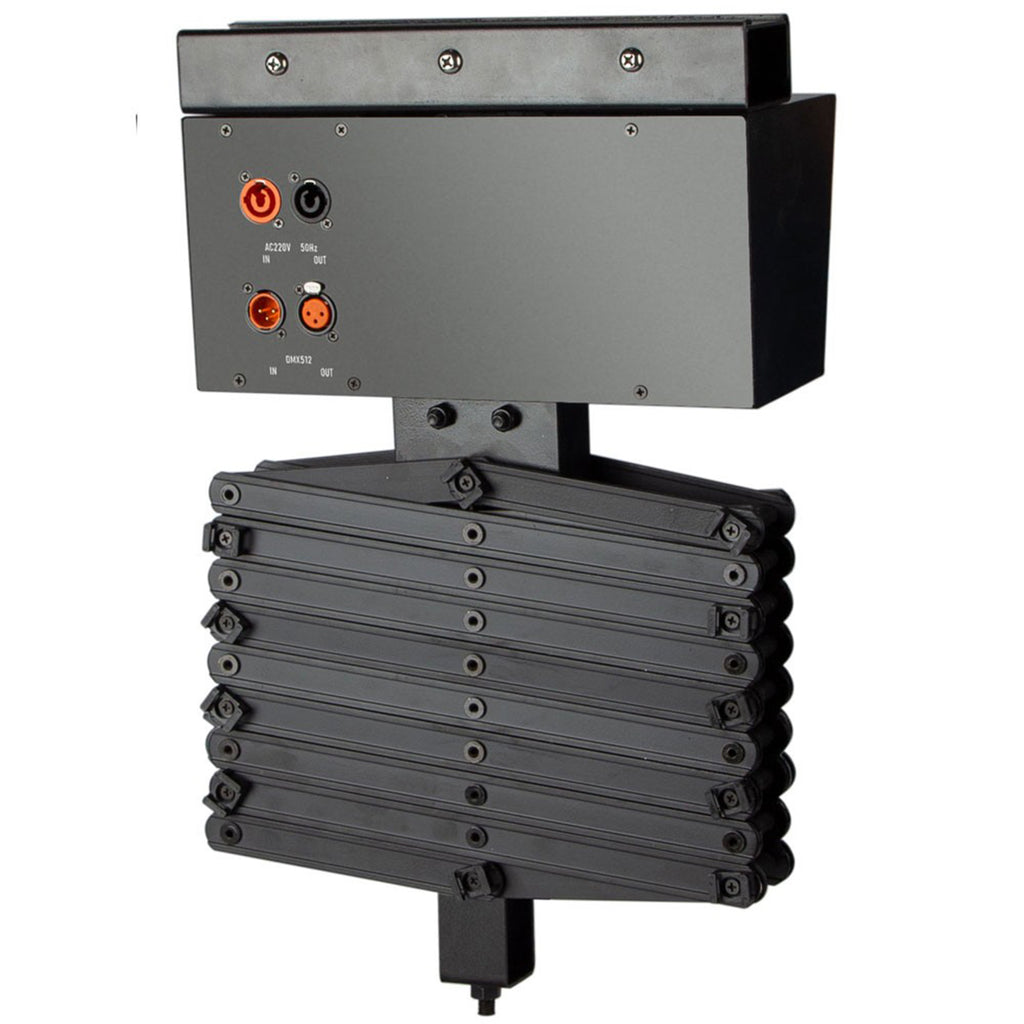

Rear Interfaces and Cable Management

The pantograph is equipped with various rear interfaces, including PowerCON True1 connectors for AC power input and output (AC 100-240V, 50/60Hz), as well as a 5-pin DMX XLR input and loop out for serial connections. To keep your setup neat and organised, a cable organiser on the rear side allows you to manage light power and DMX cables efficiently as the pantograph moves.

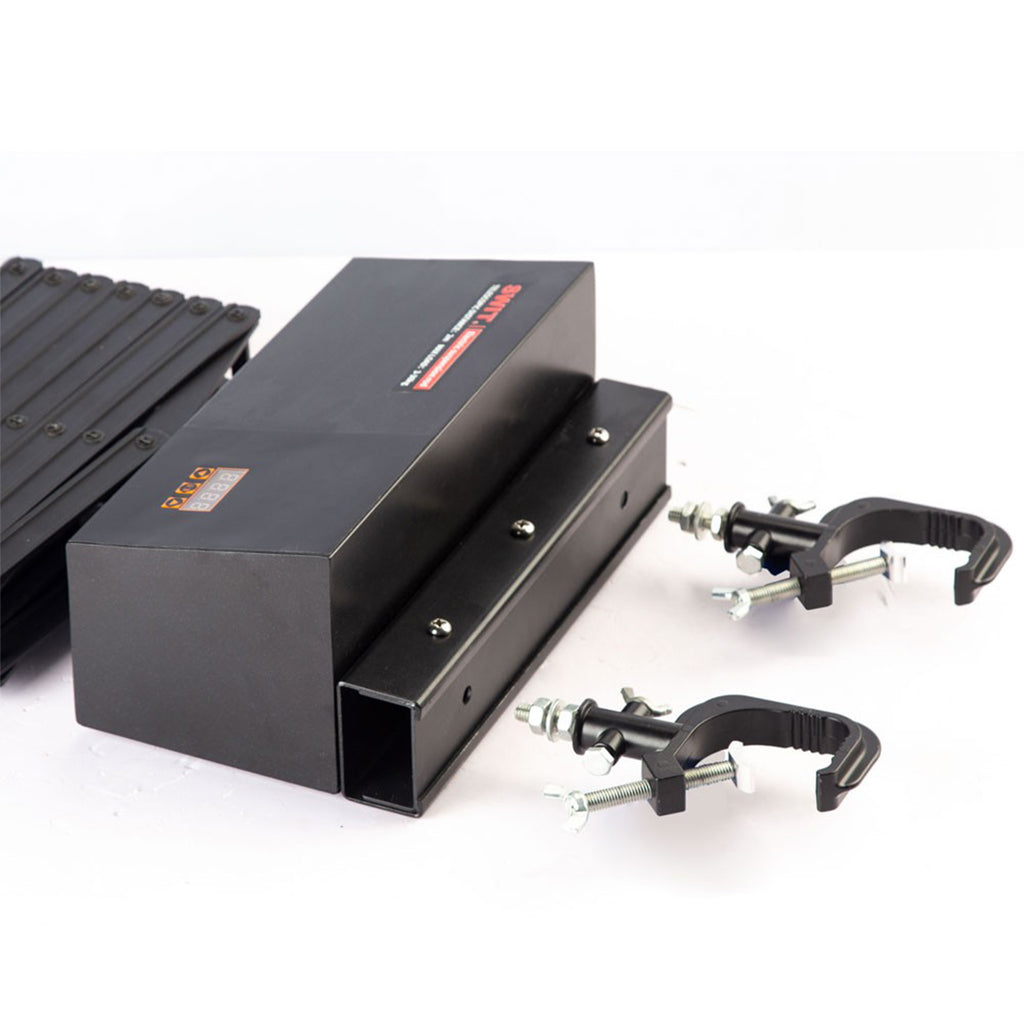

Secure Mounting and Studio Light Connection

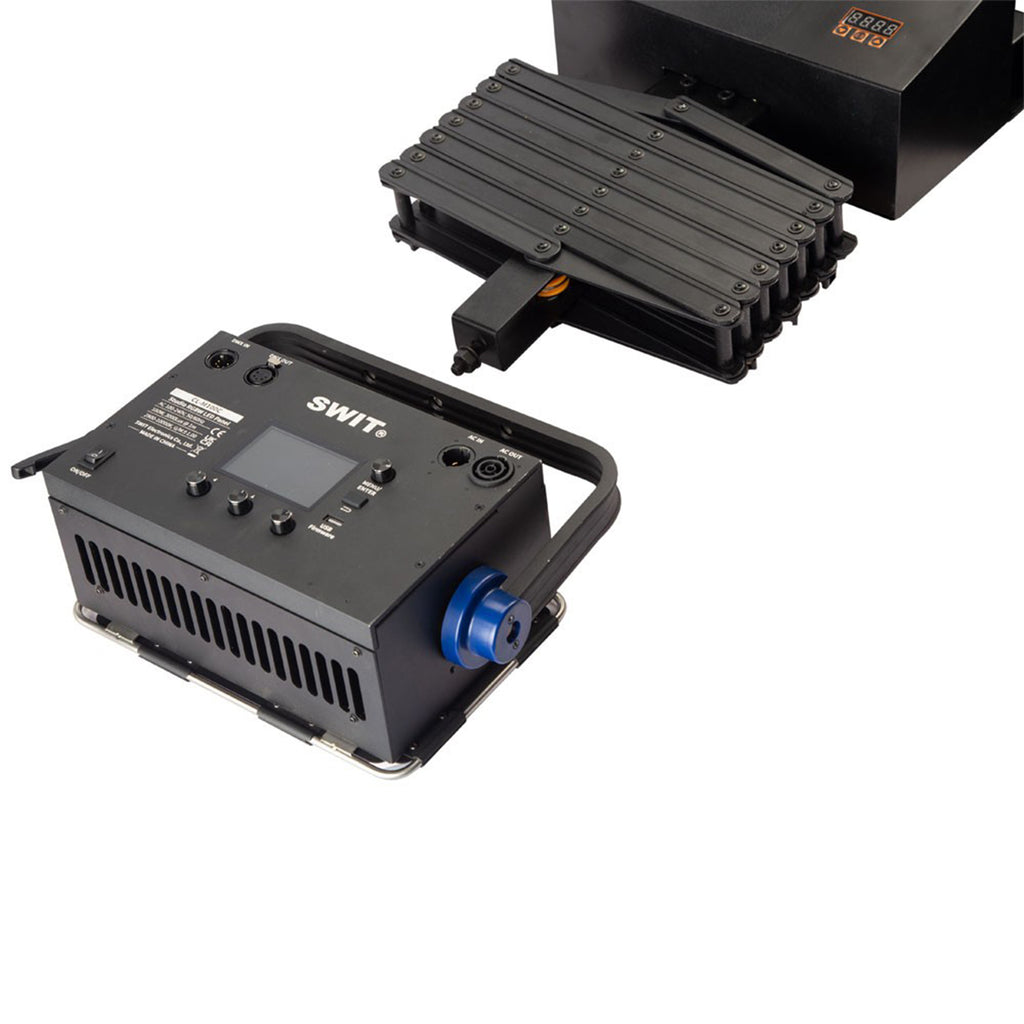

The GA-PT30E pantograph offers easy and secure installation with its ceiling hook connection, which uses screw bolts for stability. It is compatible with the SWIT GA-DG75 ceiling hook, ensuring a perfect match. The bottom end features a screw bolt and nut system for fixing the pantograph to studio light fixtures. Simply remove the baby pin socket on the yoke of SWIT lights to install the pantograph securely.

Robust Construction and Versatility

Built from aluminium alloy, the GA-PT30E is designed to support a substantial 30kg load, ensuring safe and stable performance even when extended to its full 3-meter length. Its motorized stretch control provides users with the ability to make fine adjustments, adding flexibility to any lighting setup.

The SWIT GA-PT30E DMX Motorised Precise Pantograph is a highly efficient and versatile lighting support system designed for professional use. With its 30kg load capacity, 3-meter stretch height, and DMX-controlled motorized movement, it offers exceptional precision and convenience. Whether you're looking to streamline your studio setup or enhance lighting control, this pantograph delivers the reliability and performance needed for demanding environments.

PLEASE NOTE: This particular product is part of our “Special Order” selection, so we may not hold stock for this, and is placed to order. If you are interested in this item, you can place this order as a Pre-Order, and we will Special Order your product directly from the manufacturer. This should take approximately 10-14 working days to be delivered, but please note this is subject to change.
