SWIT GA-PT50E DMX Motorized Pantograph (SPECIAL ORDER)

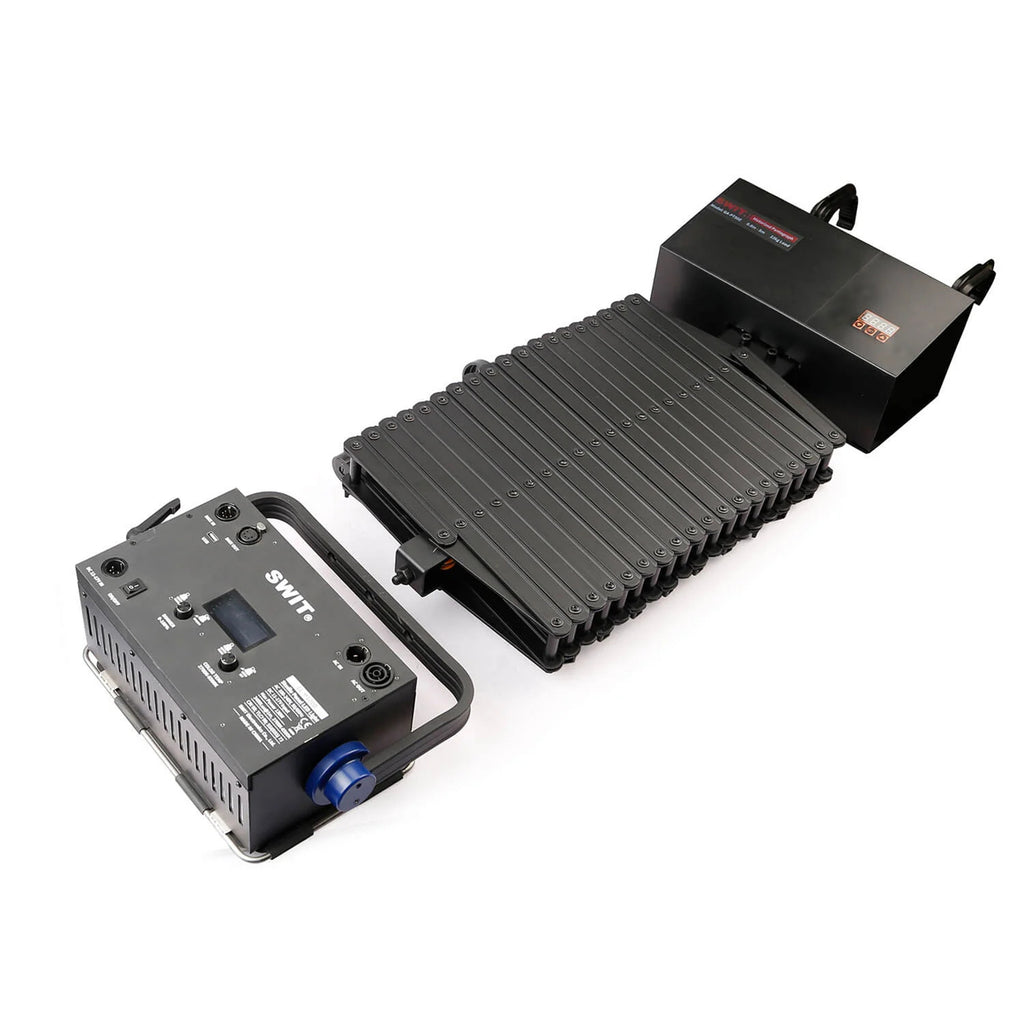

The SWIT GA-PT50E is a high-performance motorized pantograph designed for professional studio lighting setups. Featuring DMX-controlled up-and-down positioning, this system allows seamless height adjustments via a DMX console, providing precise control over lighting placement. Built from durable aluminium alloy, it supports a maximum load of 30kg and extends from 0.8m to 5m, ensuring stability and versatility. With a movement speed of 10cm per second, it delivers smooth and efficient adjustments, making it an essential tool for broadcast studios, film sets, and professional video productions.

DMX Motorized Control and Adjustable Expansion

The GA-PT50E features DMX motorized stretch control, allowing operators to adjust the height of studio lights remotely via a DMX console. The movement speed of 10cm per second ensures smooth transitions, making it ideal for precise lighting adjustments in real-time production environments. With an expansion length ranging from 0.8m to 5m, it offers maximum flexibility for various studio configurations.

Rear Panel Interfaces and Cable Management

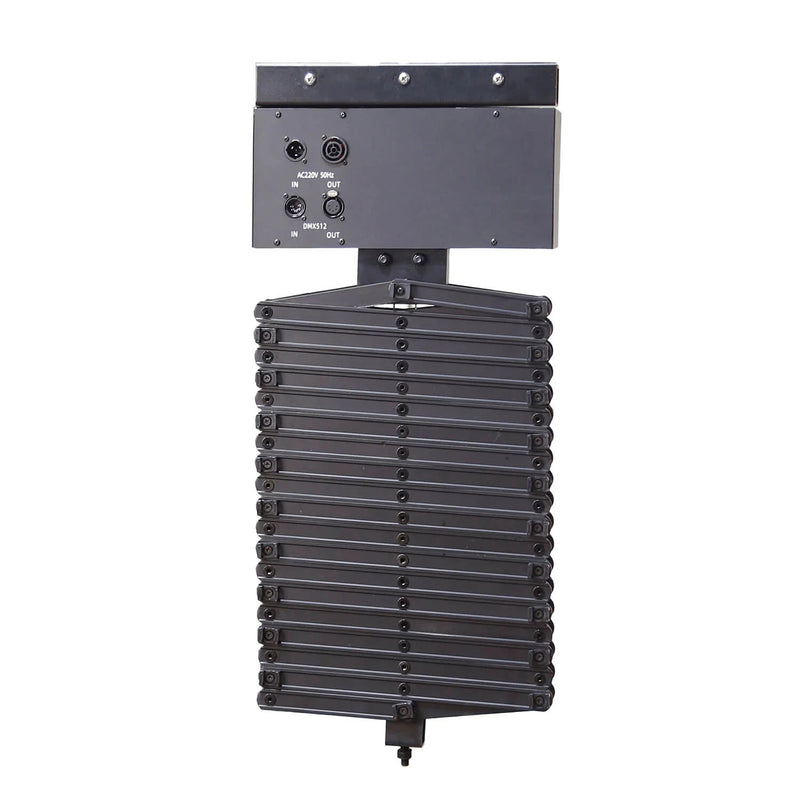

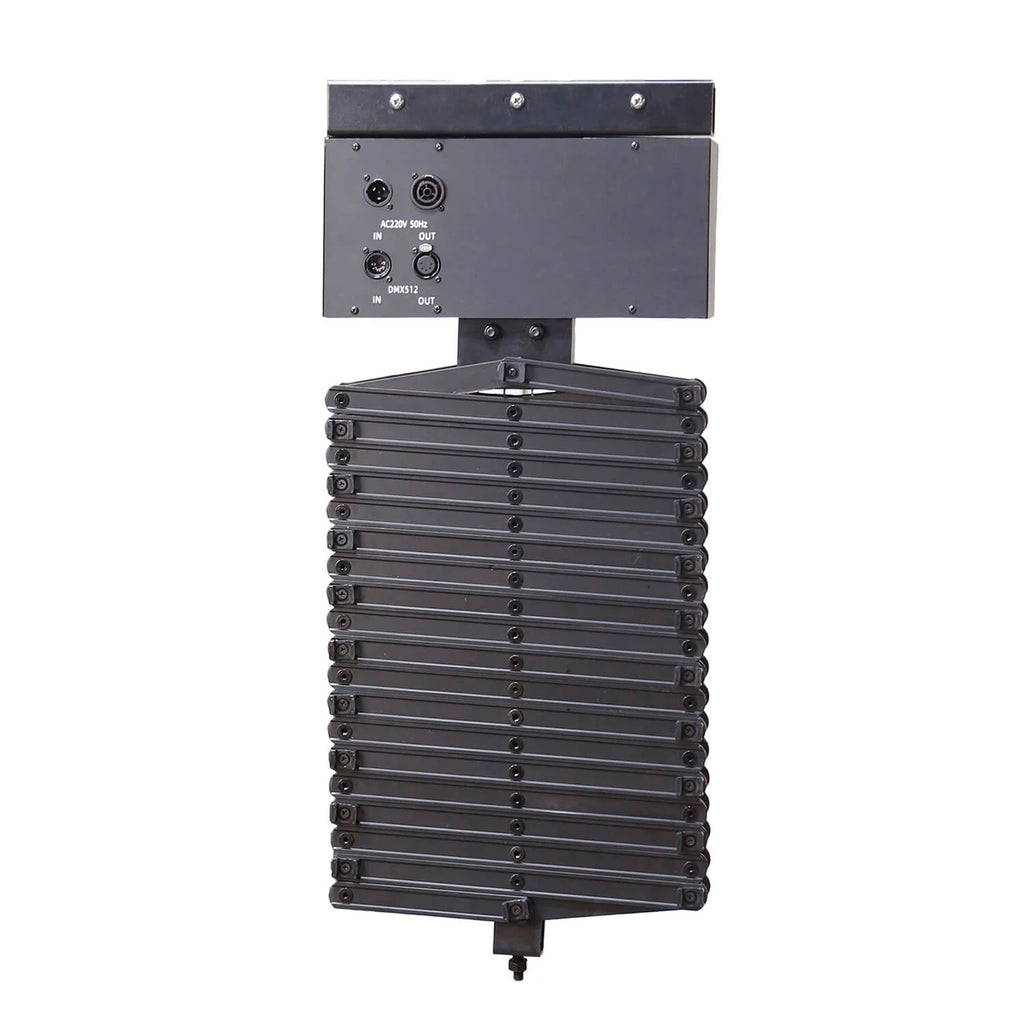

Equipped with professional-grade connectivity, the pantograph includes a 5-pin DMX input and loop output for serial connection, as well as PowerCON True1 AC 100-240V, 50/60Hz power input and loop output. These features enable seamless integration into complex lighting setups.

A built-in cable organiser on the rear side ensures that power and DMX cables remain neatly aligned as the pantograph moves, preventing tangles and maintaining a clean studio workspace. This feature enhances safety and convenience by keeping essential connections secure and organised.

Precise Positioning and Secure Installation

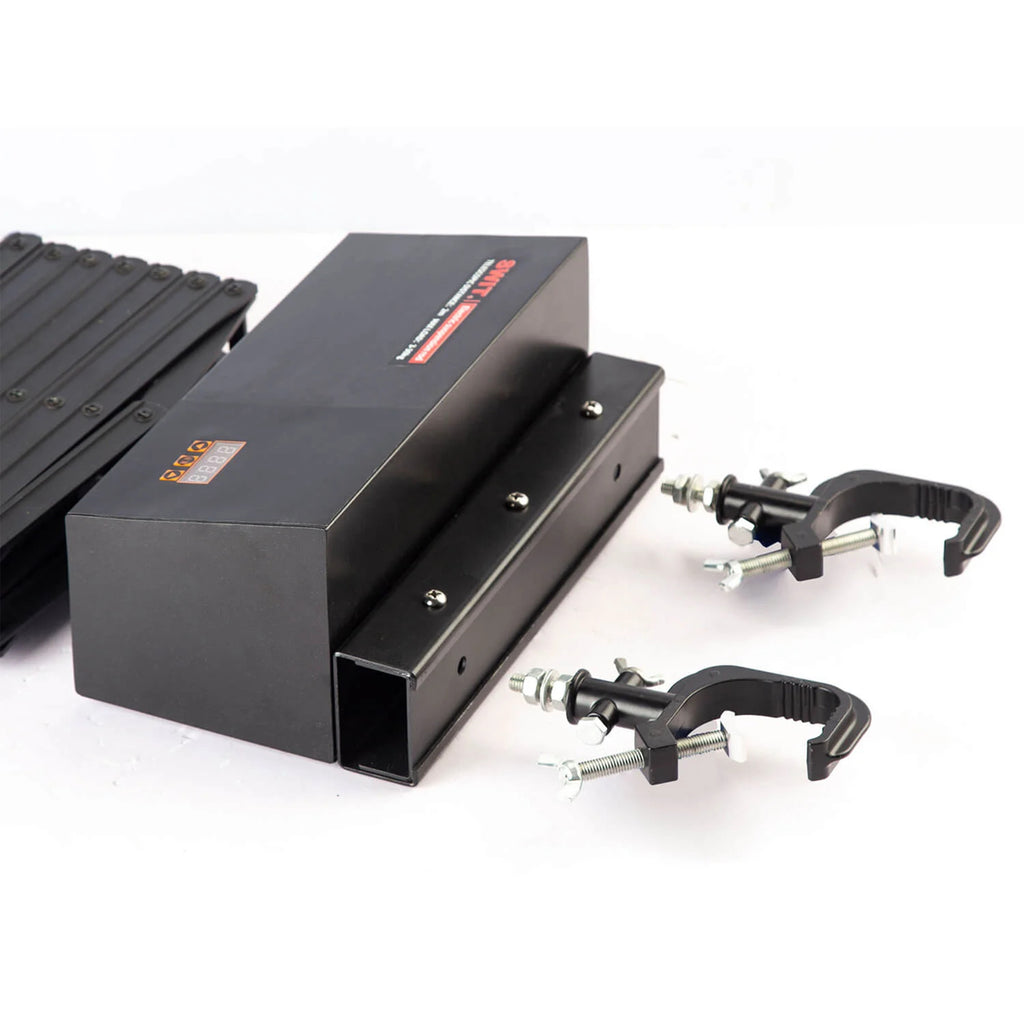

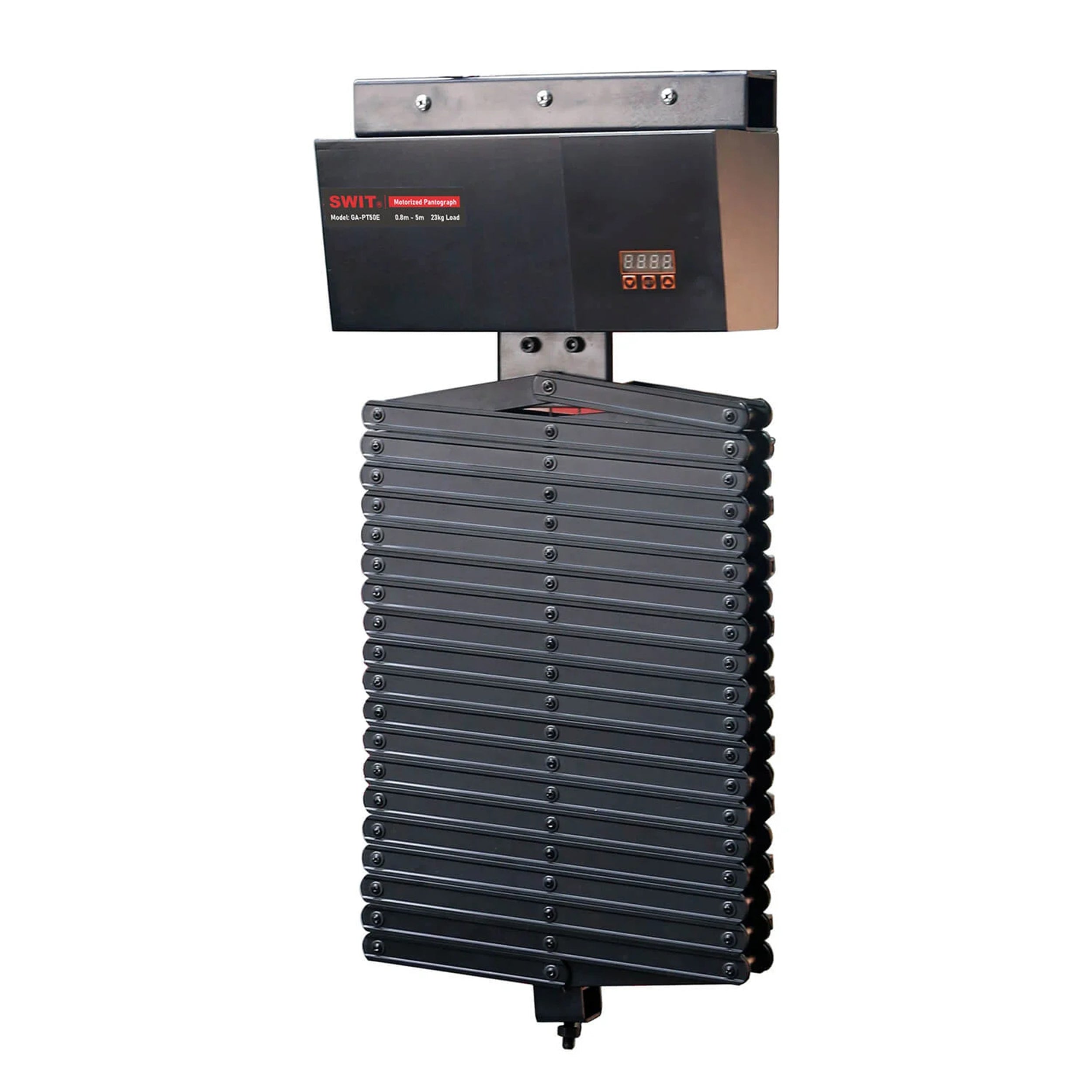

On the front panel, users can set the DMX address to control the up-and-down movement of the pantograph, ensuring precise positioning of lighting fixtures. The pantograph connects securely to ceiling hooks using screw bolts, with the SWIT GA-DG75 hook providing a perfect fit.

At the bottom, a screw bolt and nut allow for easy attachment to studio light yokes. For SWIT lights, users should remove the baby pin socket on the yoke before installation to ensure proper mounting.

The SWIT GA-PT50E DMX Motorized Pantograph is a premium solution for professional studios that require automated, precise lighting adjustments. With a 30kg load capacity, 0.8m to 5m expansion length, and smooth DMX-controlled movement, it offers unparalleled efficiency and control. The integrated cable organiser keeps power and DMX cables neatly aligned, while robust mounting options ensure a secure installation. Designed for demanding studio environments, the GA-PT50E enhances workflow efficiency and lighting precision.

PLEASE NOTE: This particular product is part of our “Special Order” selection, so we may not hold stock for this, and is placed to order. If you are interested in this item, you can place this order as a Pre-Order, and we will Special Order your product directly from the manufacturer. This should take approximately 10-14 working days to be delivered, but please note this is subject to change.
